How to Measure Your Two-Piece Sling Chair/Chaise

Before You Begin

⚠️ Important Note: This guide is only for chair, chaise and loveseat with a two-piece sling. If your chair/chaise has a different design, please contact us for assistance.

⚠️Please do NOT remove your old slings to measure—this instruction applies only to rails facing upward.⚠️

What You’ll measure

1. Back Slings

   1. TOP WIDTH

   2. BOTTOM WIDTH

   3. LENGTH

2. Seat Slings

   1. BACK WIDTH

   2. FRONT WIDTH

   3. LENGTH

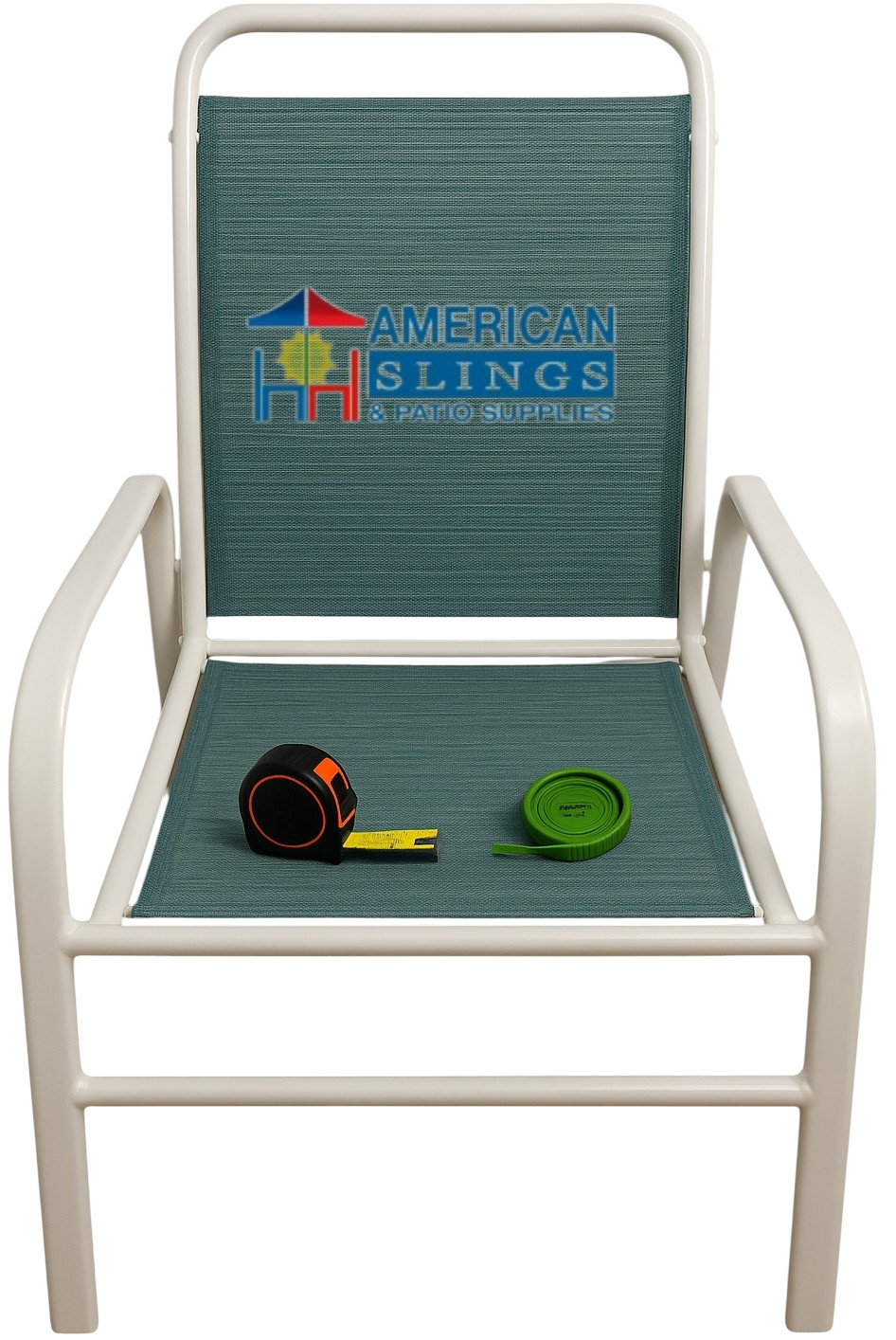

Tools You’ll Need

• A metal or cloth tape measure.



Step 1: Measuring the Back Sling.

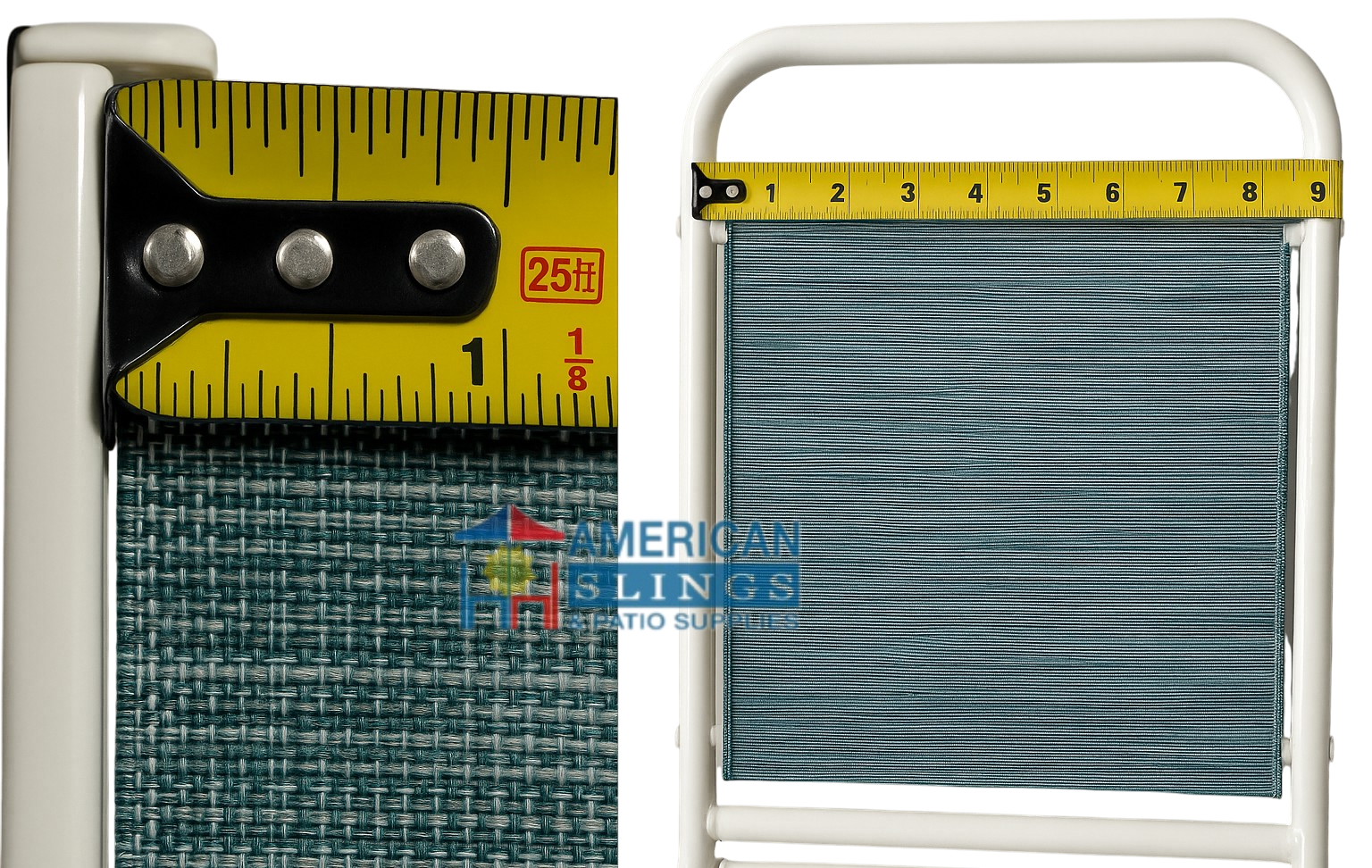

1. Top Width

• Place the tape measure where the visible material starts.

• Stretch it straight across to the end of visible material.

• Measure only the visible fabric (exclude the rails).

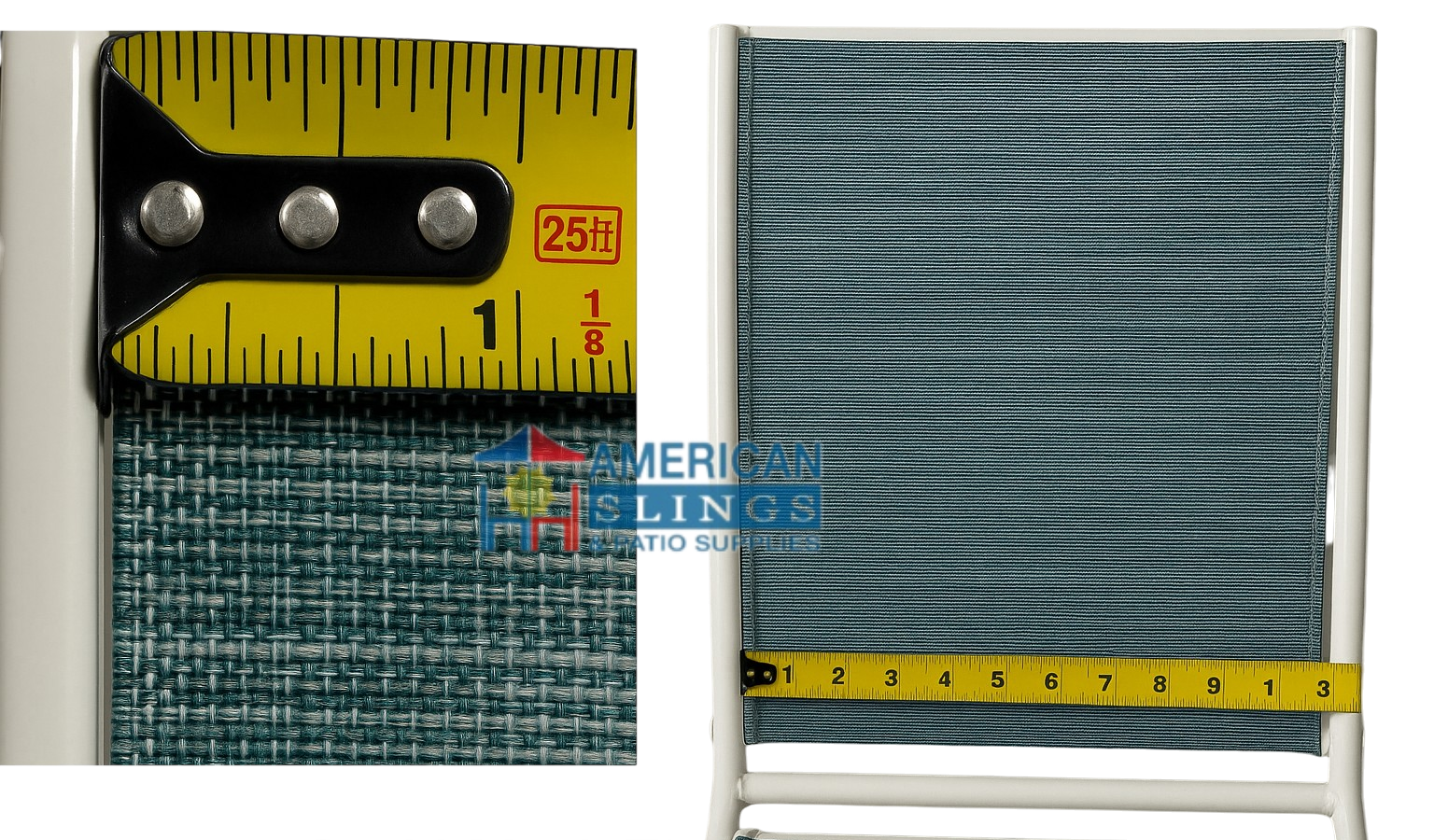

2. Bottom Width

• Repeat the same process for the bottom width.

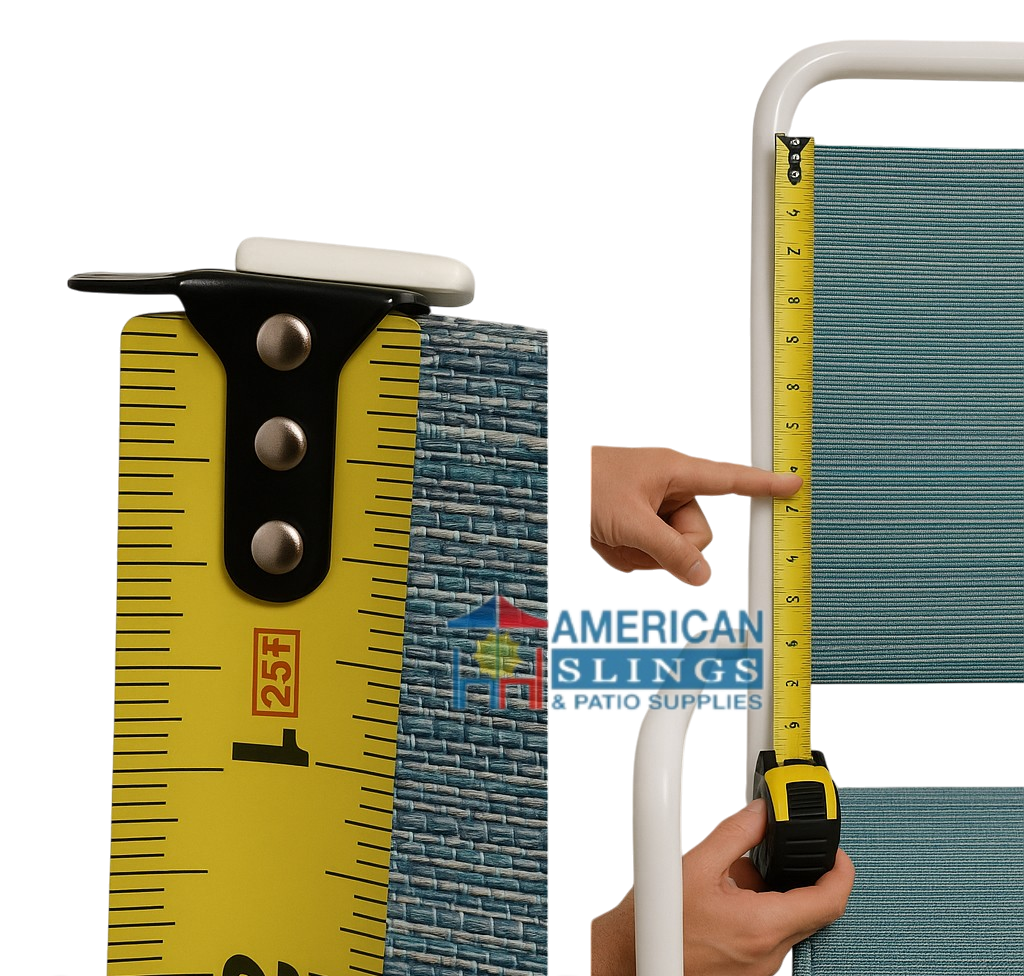

3. Back Length

• Place the tape measure at the top of the rail.

• Extend it down to the opposite end cap.

• Do not include the end cap.



Step 2: Measure the Seat Sling

1. Back Width

• Repeat the same process for the back width of the seat.

• Stretch it straight across to the end of visible material.

• Measure only the visible fabric (exclude the rails).

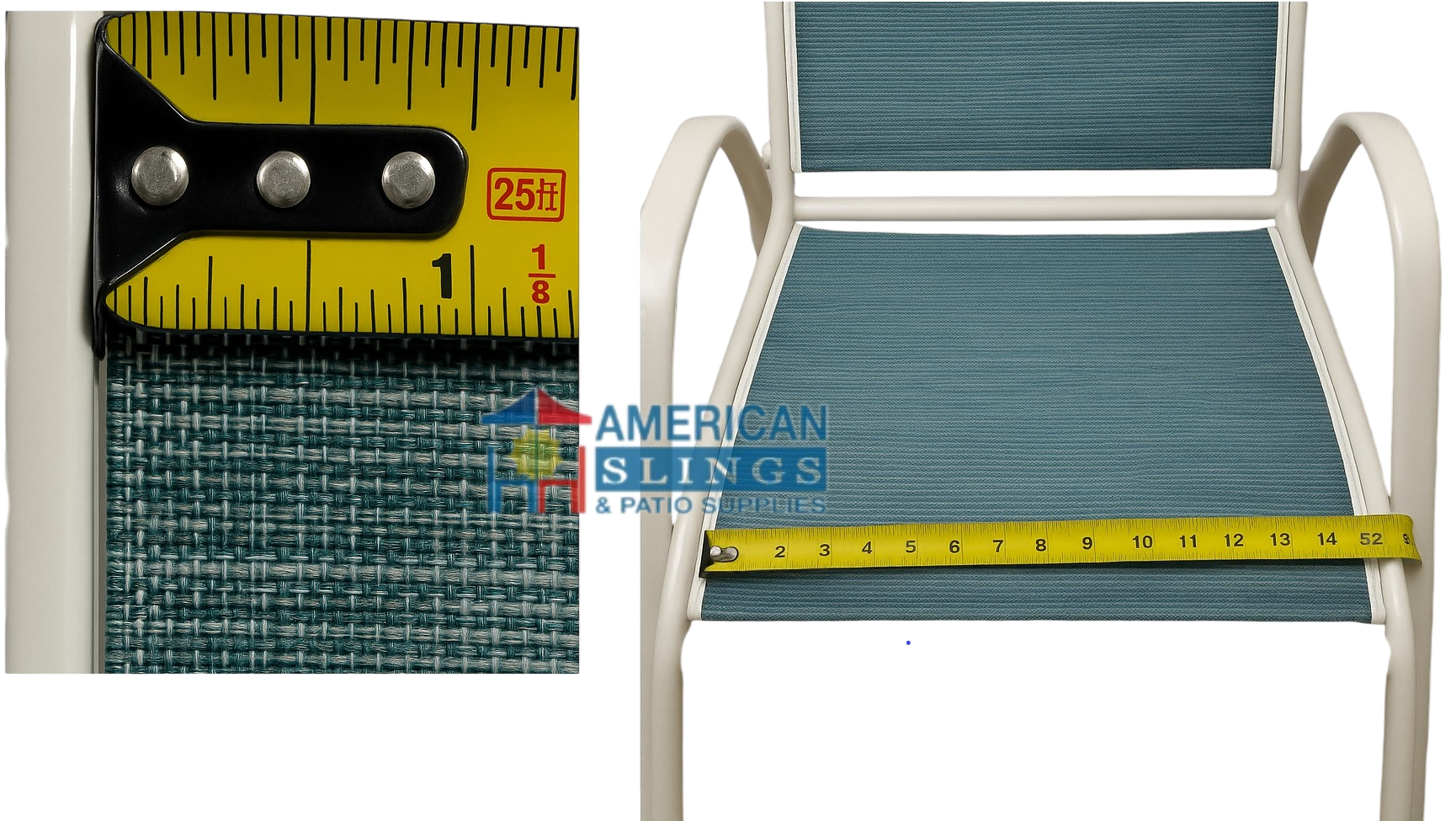

2. Front Width

• Place the tape measure where the visible material starts.

• Stretch it straight across to the end of visible material.

• Measure only the visible fabric (exclude the rails).

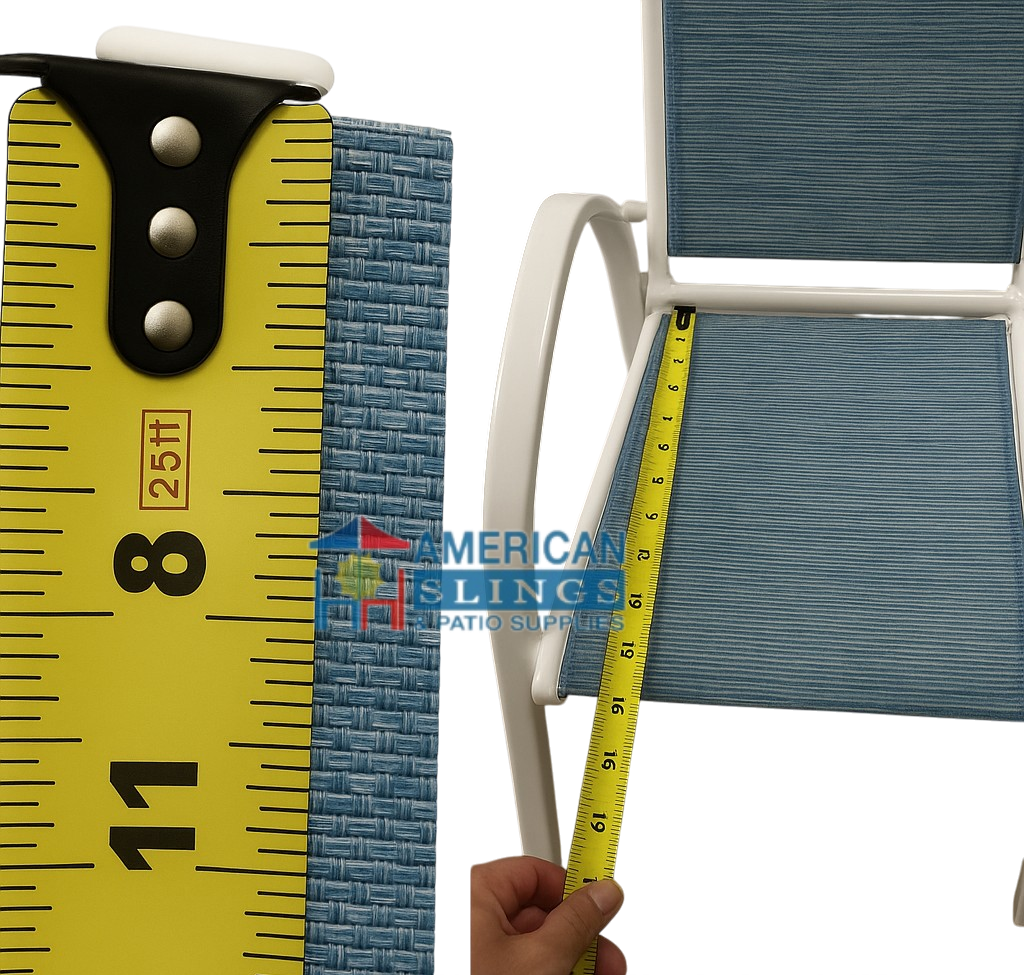

3. Seat Length

• Place the tape measure at the back of the rail.

• Extend it down to the opposite end cap.

• Do not include the end cap.
